Custom GAS Pita Oven Conveyor Tunnel oven 6 ft long $17,000

Custom pita oven conveyor tunnel oven 6 ft long. With hot roll 24” x 4” wide plate, ¼” thick black carbon metal. 4 infrared gas burners on top. 2 natural gas tube burners on bottom. Natural gas, ¾” gas line, 220 volt with speed control for oven. There is a UL approved safety gas valve to each burner that lighted up manually (no pilot system). Top burner are American made with certificate, we use all approved gas component. Capacity up to 600 pita per hour.

Option Add On:Infeed conveyor (additional) 24″ long $1750

Option:UL or NSF $2700 – done at our factory

Plus Shipping & Creating $750 – Delivery is not Included – Lead time is 12-14 weeks. –

4 feet long and custom size $14,000

Custom pita conveyor tunnel oven 4 feet long x 32” wide.
With hot roll 18” x 4” wide plate, ¼” thick black carbon metal.
4 infrared gas burners on top. 2 natural gas tube burners on bottom.
18” in-feed conveyor welded to frame. Natural gas, ¾” gas line,
110 volt with speed control for oven. Total oven including the in-feed
conveyor and discharge conveyor (optional) is 68”.

The 48″ X 32″ tunnel oven spec: All stainless steel frame size 48″ X 32″ with 18″ wide plate. Type 2 all welded hood with 6″ exhaust pipe connection 85,000 BTU – 110 volt gear motor with speed control. Gas connection at 3/4″ NPT 6″-9″ WC

ADD ONS:

Pallet and Crating $700

2 feet discharge conveyor with independent motor $1750

Lead time is 12-14 weeks.
Shipping is not included in the quote.
*NSF inspection approximate cost is $2,500. This will be quoted by third party (CSA Group).
Please note that price is base on inspection to be done in our location.

Conveyor Gas Or Electric Pita / Lavash Ovens Made To Order

ROUND PITA OVENS:

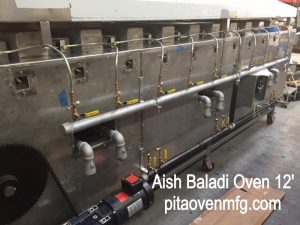

Attached below is the quote for the 11 ft Aish Baladi / pita tunnel oven that we have on hand,It is almost complete and it can be the right answer to your customer request, As far as production capacity it can bake between 2500-3000 pita bread in hour, The extra bottom burner will be capable to do any job including Aish Baladi bread, I included in the price the in feed 4 ft long conveyor with independent motor since customer be able to bake directly on the plate or feed pita with the conveyor,Cooling conveyor can be fabricate at any shape to complete this line.

$33,000 PLUS $1800 UL Inspection
